Kubiček Balloons AV2


Courtesy Airship Initiatives


Courtesy Airship Initiatives


Courtesy Airship Initiatives


Courtesy Airship Initiatives

Courtesy Airship Initiatives

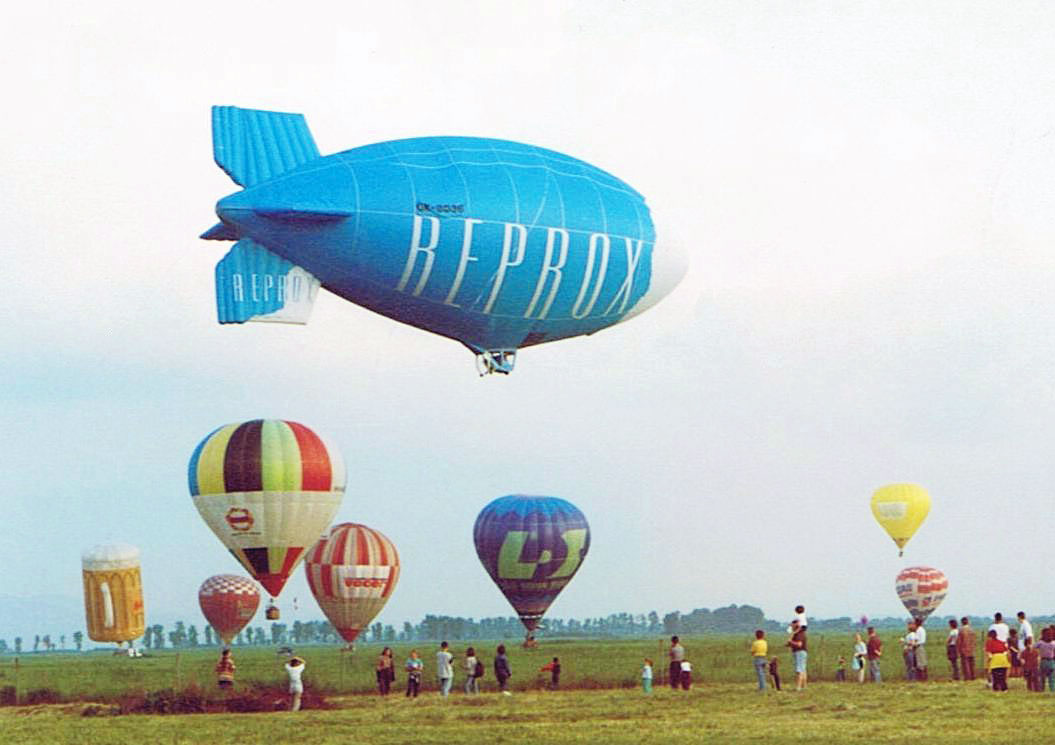

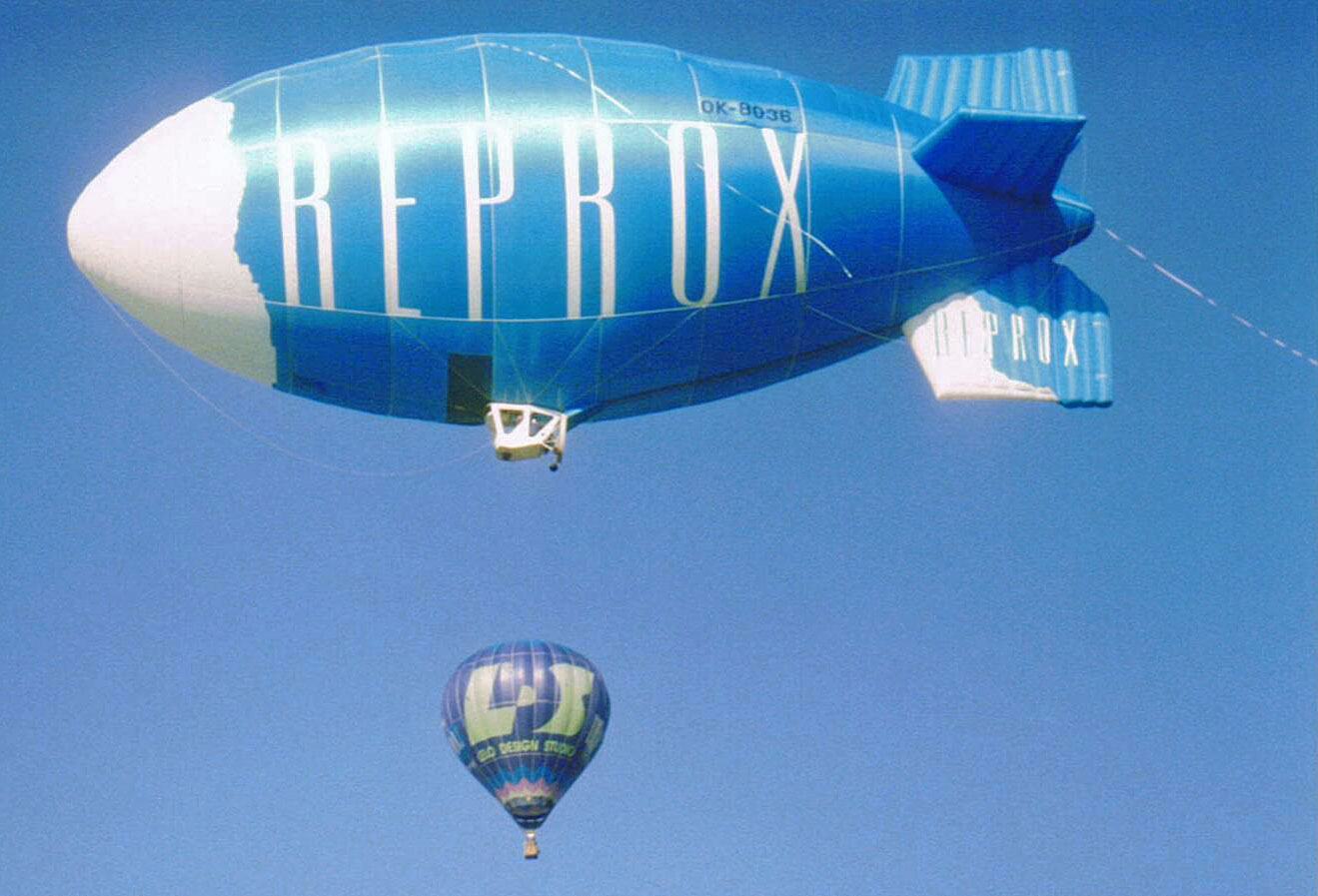

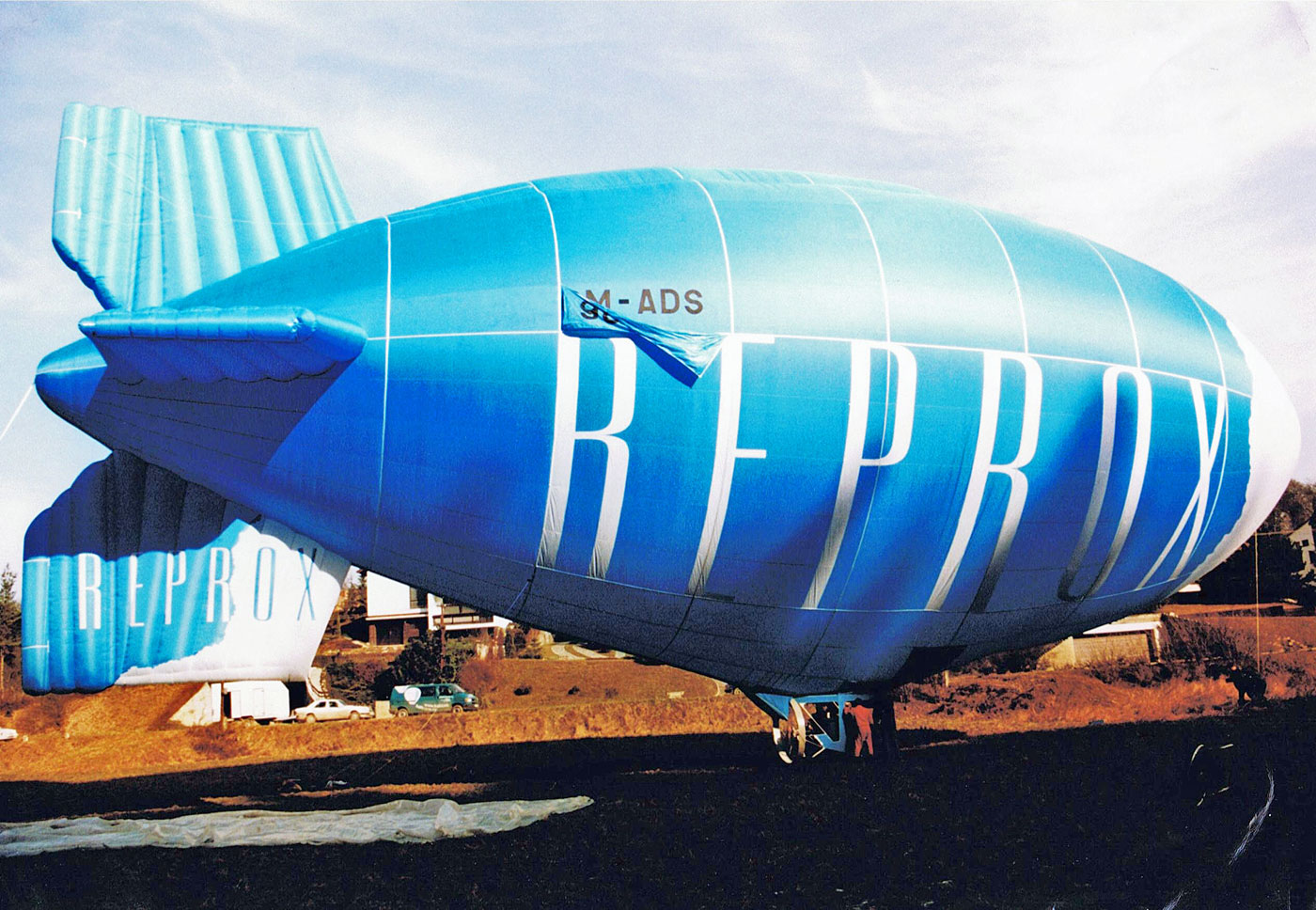

AV2 first flew on 26 May 1999 and attended the Kosice Balloon Meet the following month. It carried artwork for a Slovakian company, Reprox Kosice, which produces heat insulating materials.

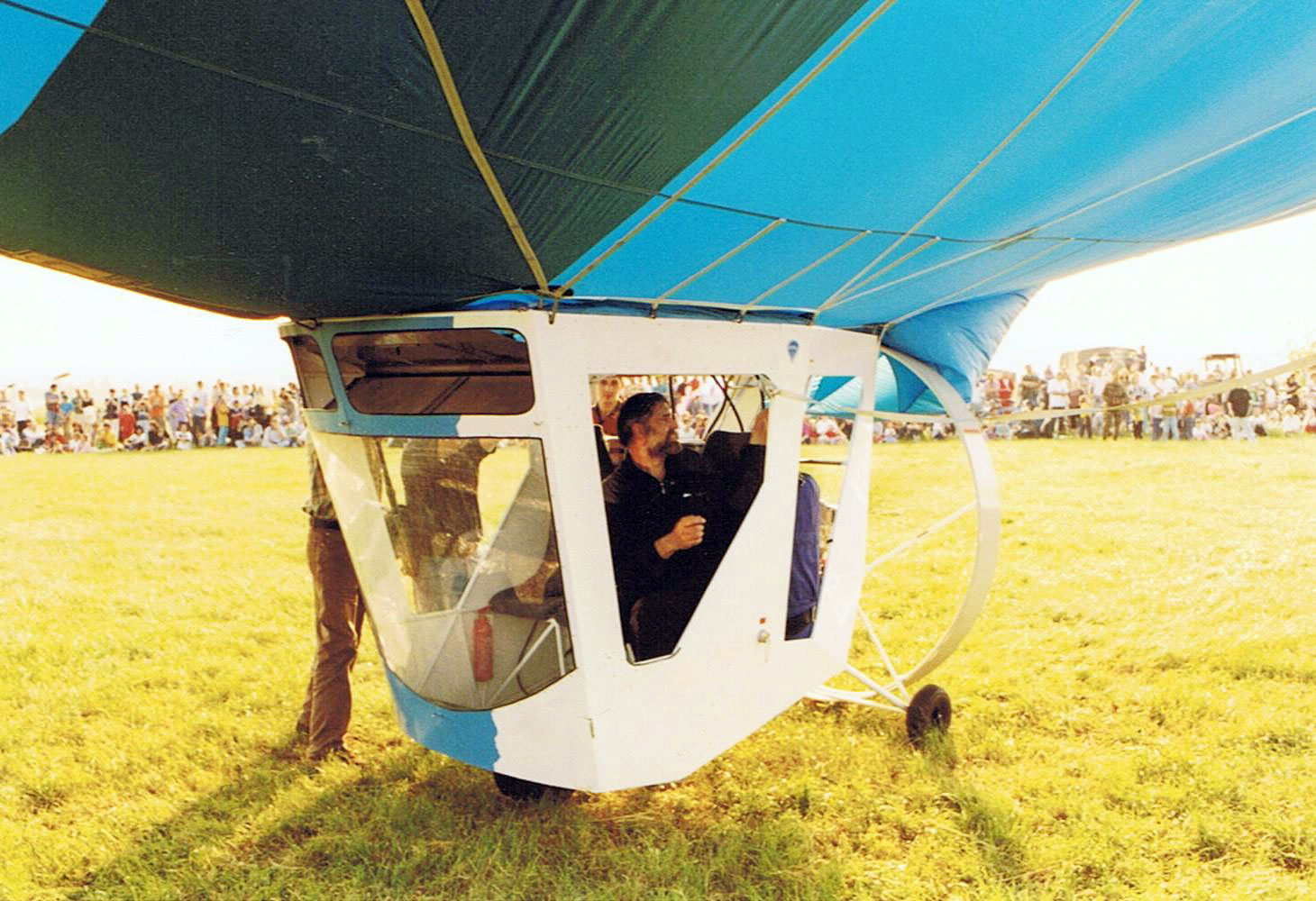

The Kubiček AV2 has a volume of 100,000 cu ft and an envelope length of 125 ft. Power comes from a Rotax 503 UL-1V, giving a max speed of around 20 km/h or 11 knots. The car or gondola is a traditional welded latticework with a composite covering riveted to the frame. It is equipped with nose-wheel undercarriage. The fuel tank for the motors is located underneath the middle seat. The basic flight arrangement is as follows: 3 persons and 3 gas cylinders supplying the Kubiček H3 double burners. In many respects the gondola configuration resembles the design for the Cameron DP series
